We create new lighting with the technology of XENOLED®
High Fidelity And Full Color Gamut
TM-30-15 is a new method for measuring color rendition, trying to supplant CRI. It comprises three primary components:
- 1. Rf- a fidelity index that is similar to the commonly used CRI
- 2. Rg- a gamut index that provides information about saturation
- 3. Color vector graphic- a graphical representation of hue and saturation relative to a reference source
There are two main differences between TM-30-15 and CRI. One is that CRI provides information about fidelity, but does not provide any information on saturation while TM-30-15 uses the Gamut Index (Rg) to describe differences in saturation. The other is that whereas CRI uses only eight color samples to determine fidelity, the TM-30-15 uses 99 color samples. Such an artificially high CRI value would result in a lower TM-30-15 value since TM-30-15 has 99 color samples. After all, matching spectrum peaks to 99 color samples is very difficult.
* Reference : Energy Star Webinar. March 31, 2016. Evaluating Color Rendering with TM-30.
* Reference : Energy Star Webinar. March 31, 2016. Evaluating Color Rendering with TM-30.
After several years of phosphor recipe development, we achieved to have high Rf scores and could design SPDs based on fundamental black body curves.
ALLIX XENOLED®ⅠSeries
| CCT | CRI Ra | CRI R9 | CRI R12 | TM30-15 Rf | TM30-15 Rg | Color Vector Graphic | Color Distortion Graphic |
|---|---|---|---|---|---|---|---|

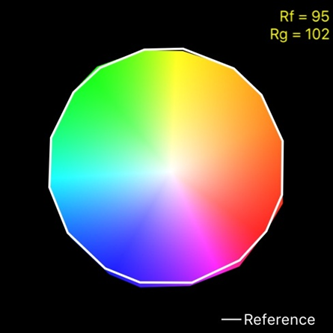

| 2700K | 97 | 95 | 93 | 95 | 102 |  |
 |
| 6500K | 97 | 90 | 93 | 91 | 100 |  |
 |
ALLIX XENOLED®Ⅱ Series
| CCT | CRI Ra | CRI R9 | CRI R12 | TM30-15 Rf | TM30-15 Rg | Color Vector Graphic | Color Distortion Graphic |
|---|---|---|---|---|---|---|---|
| 2700K | 97 | 95 | 93 | 95 | 102 | |
|
| 6500K | 97 | 90 | 93 | 91 | 100 | |
|
